Making PC USB LCD controller project

USB controller LCDThis really a work that so cool if you like modif PC. So this is a USB interface for alphanumeric LCD display like 4 × 20 which can be controlled with LCD Smartie program. USB interface is implemented by using PIC18F2550 microcontroller, Using USB LCD modules. Below is a project of the USB LCD controller.

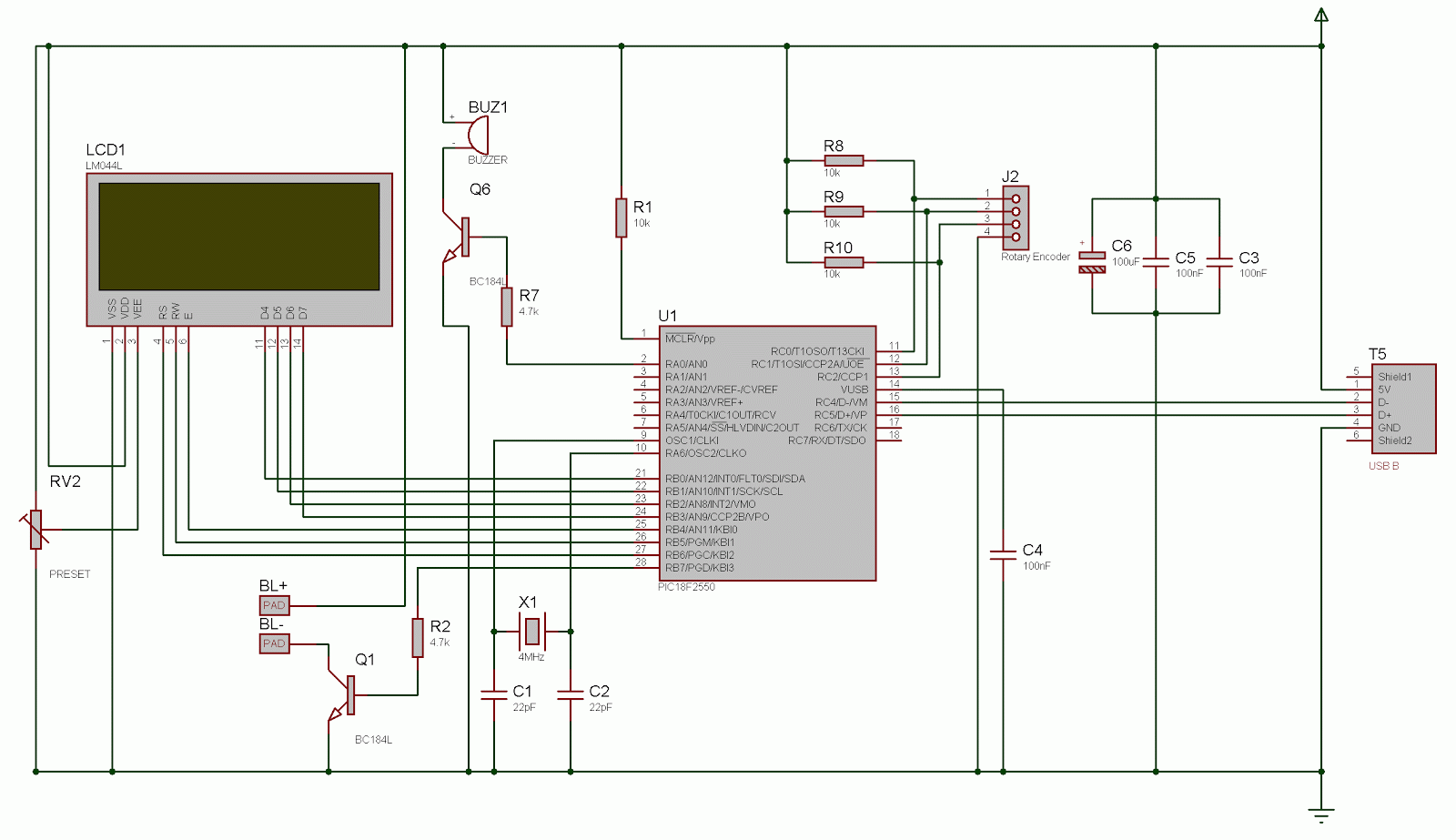

Schematic circuit and PCB design

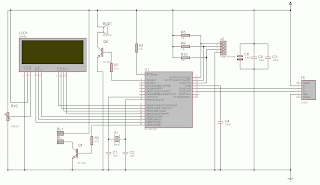

Schematic USB control LCD

USB to control LCD from PC

source  | link
