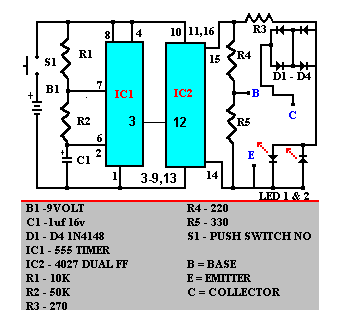

This regular circuit has helped me prohibited on many occasions. It is able to check transistors, inside the circuit, down to 40 ohms across the radio dish-foot otherwise base-emitter junctions. It can in addition check the output power transistors on amplifier circuits. Circuit company is because follows. The 555 timer ( IC1 ) is usual up as a 12hz multi vibrator. The output on pin 3 drives the 4027 flip-dud ( IC2). This flip-flop divides the input frequency by two and delivers complementary voltage outputs to pin 15 and 14. The outputs are connected to LED1 and LED2 through the current limiting resistor R3.
The LED's are arranged so to facilitate what time the polarity across the circuit is lone way single one LED force light and what time the polarity reverses the other LED will light, therefore while rebuff transistor is connected to the tester the LED's will alternately flicker. The IC2 outputs are too connected to resistors R4 and R5 with the junction of these two resistors connected to the immoral of the transistor being tested. With a proficient transistor connected to the tester, the transistor yearn for circle on and crop a passing across the LED duo. If a good NPN transistor is connected next LED1 will burst by itself and if a good PNP transistor is connected then LED2 will flash by itself. If the transistor is initiate both LED's force flash and if the transistor is shorted at that moment neither LED will flash.
